Single Phase Energy Meter KADL 200

Name: Single Phase Energy Meter KADL 200
Brand: KLED IOT SENSING PRIVATE LIMITED
Price: 6000 INR
Availability: InStock

6000 INR/Piece

Get a Price/Quote

Product Details:

Wireless No
Sensor Type Electronic
Housing Material Polycarbonate/Plastic
Mounting Thread DIN Rail Mount
Sensitivity 0.01 kWh
Signal Type Digital
Features LCD display, Pulse output, Easy installation
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Single Phase Energy Meter KADL 200 Price And Quantity

Minimum Order Quantity 1 Piece
Price 6000 INR/Piece

Single Phase Energy Meter KADL 200 Product Specifications

Resolution 0.01 kWh
Input AC Single Phase
Ingress Protection IP51
Cable Length Dependent on Installation
Usage Monitoring and recording electrical energy consumption
Measurement Range 0-99999.99 kWh
Accuracy Class 1
Features LCD display, Pulse output, Easy installation
Signal Type Digital
Mounting Thread DIN Rail Mount
Sensitivity 0.01 kWh
Sensor Type Electronic
Housing Material Polycarbonate/Plastic
Voltage 230V AC
Wireless No
IP Rating IP51
Response Time Instantaneous Display
Mounting Type DIN Rail
Weight Approx. 300g
Product Type Single Phase Energy Meter
Function Energy Measurement
Material Plastic Body
Output Pulse Output
Interface LCD Display
Operating Temperature -25C to +55C
Power Consumption <2W / <10VA
Application Industrial, Commercial, Residential

Color White/Grey
Conformity IEC62053-21 Standard
Overload Protection Yes
Data Storage Non-volatile Memory
Humidity Range 95% RH (non-condensing)
Display Type Digital LCD
Current Range 5(80)A
Tamper Detection Yes
Phase Single Phase
Dimensions Approx. 100mm x 36mm x 65mm
Frequency 50/60 Hz

Product Description

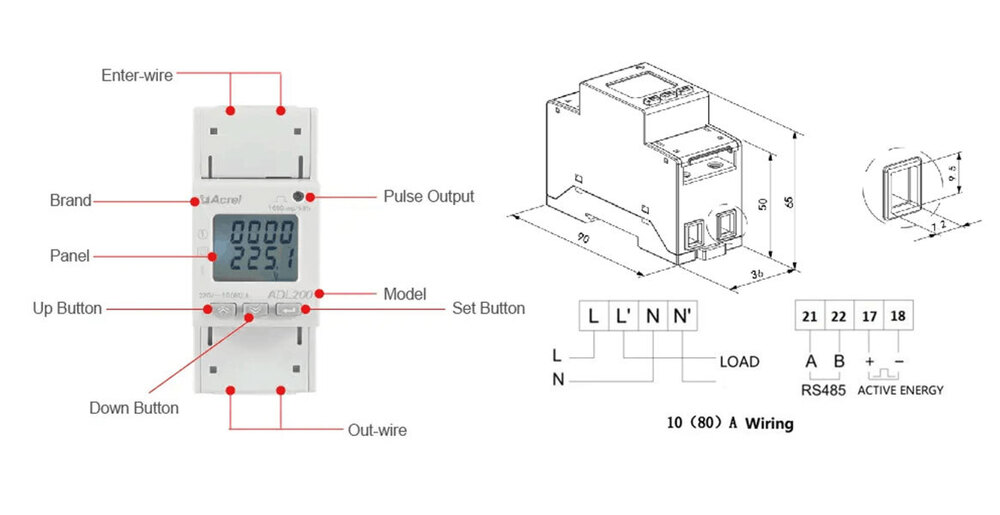

Measurement 1: 1-phase AC kWh, kVarh
Measurement 2: U,I,P,Q,S,PF,F and etc
Display: LCD Display
HMI: Keypads Programming
Communication: RS485(MODBUS-RTU)
Multi-rate/tariff: 4 Tariff Rates and etc
Pulse Output: Active Pulse Output
Rated Voltage: 220~264Vac L-N
Rated Current: 10(80)A AC
Frequency: 45~65 Hz
Wiring: 1-phase 2-wire
Accuracy: 1.0%(kWh)
Temperature: -25°C~+55C
Humidity: <95% RH

Accurate and Reliable Energy Monitoring

The KADL 200 Single Phase Energy Meter ensures dependable measurement of electrical consumption across various applications, meeting Class 1 accuracy standards. Its advanced electronic sensor, LCD display, and 0.01 kWh resolution allow for precise and instant energy tracking, making it ideal for industrial, commercial, and residential environments.

Enhanced Security and Longevity

Featuring tamper detection, overload protection, and a non-volatile memory, this meter preserves data integrity and safeguards against unauthorized access. Built with IP51 ingress protection and a tough polycarbonate body, it stands resilient in high humidity and temperature fluctuations, ensuring long-term performance.

Effortless Installation and Operation

Designed with a compact DIN rail mount, the KADL 200 is simple to install in new or existing systems. The digital LCD display offers immediate, clear readings and pulse output for seamless integration with external monitoring devices, streamlining usage and maintenance for all users.

FAQ's of Single Phase Energy Meter KADL 200:

Q: How is the KADL 200 Single Phase Energy Meter installed?

A: The KADL 200 is designed for easy installation using a DIN rail mount. This allows for quick and secure placement in electrical panels for residential, commercial, or industrial setups.

Q: What information does the digital LCD display provide?

A: The digital LCD display shows instantaneous energy consumption readings up to 99,999.99 kWh, along with any relevant alerts such as overload or tamper detection status, allowing for straightforward monitoring.

Q: When should the KADL 200 meter be used?

A: This energy meter is ideal for situations where accurate and reliable monitoring of electrical consumption is necessary, such as in industrial, commercial, or residential buildings requiring precise usage records and tamper protection.

Q: Where can this energy meter operate effectively?

A: With an operating temperature range from -25C to +55C and up to 95% non-condensing humidity, the KADL 200 operates effectively in diverse Indian climates, indoors or in protected zones requiring IP51 ingress protection.

Q: What process protects the meter from data loss?

A: The KADL 200 is equipped with a non-volatile memory system, ensuring that all recorded energy data is retained even during power outages or temporary disconnections.

Q: How does tamper detection and overload protection benefit users?

A: Tamper detection alerts users to unauthorized access attempts, preserving data accuracy and security, while overload protection safeguards both the meter and connected circuits, minimizing the risk of damage or failure.

Q: What are the main usage benefits of choosing the KADL 200?

A: Users benefit from precise energy monitoring, resilience in tough environments, easy installation, data security, and compliance with international standards-making it a versatile and effective solution for energy management.
